TECH SPECIFICATION

ez-Pro VS6

Basic 6 Channel Switcher

Specs

Input

 Video Input  SD/HD-SDI (BNC 75Ohm) x 6
 Fill Output   SD/HD-SDI (BNC 75Ohm) x 1
 Key Input   SD/HD-SDI (BNC 75Ohm) x 1
 Audio Input  Stereo XLR x2



Output

 Video Output  SD/HD-SDI (BNC 75Ohm) x4 (PGM x 2, AUX x 2)
 Multiview Output  HDMI x 1, 1080p @60/50, 720p @60/50, 576p @50, 480p @60



 Internal Processing  4:2:2 10bits



 Resolution Supported

  1920 x 1080i @59.94/ 60/ 50
  1920 x 1080p @59.94/ 60/ 50 (2 Channels)
  1280 x 720p @59.94/60/ 50
  720 x 576i @50 (625i)
  720 x 480i @59.94 (525i)



 Management
 Control Buttons @ Front  Input select x 6, Output select x 4, Menu select x 1
 LCD @ Front  Status & Control
 USB @ Rear  Easy to use GUI application, Firmware Update



 Physical
 Dimension  44(H) x 483(W) x 240(D) (excluding connectors)
 Power Input  115 - 240 VAC @50/60Hz
 Operation Temperatrue  0 - 40 °C
 Power Consumption  30W (max)
 Weight  3.1Kg



Dimensions

Dimensions

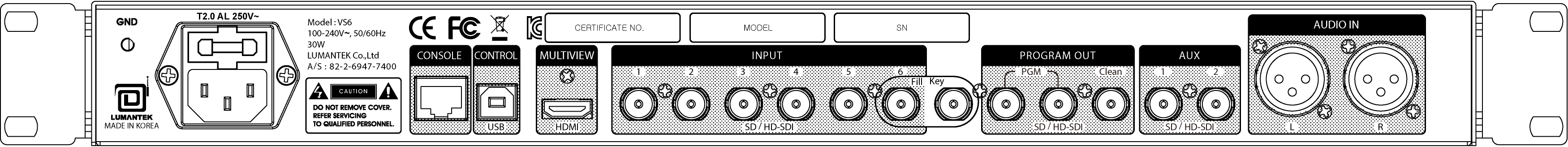

Rear
